Product Name: | Crusher Shredder Pelletizer Blades For Plastic Rubber Industry | Certification: | ISO 9001 |
---|---|---|---|
Raw Material: | Steel Drum | Plastic Type: | PET |
Use: | Waste Plastic Crusher | Shaft Design: | Single Shaft |
Surface: | No Burrs, Shining Surface | Packaging Details: | Plastic Shredder Blade Price/Waste Plastic WILL BE PACKED BY FILM. |
Port: | Plastic Shredder Blade Price/Waste Plastic SHANGHAI PORT | Final Product: | Flakes 5-14 Mm |
High Light: | saw cutting blade,industrial shredder blades |
1. Introduction of plastic shredder blade price,waste plastic crusher,shredder plastic
The biaxially shredder shear shredder known by shearing, tearing and pressing the material to achieve
reduced size, which is mainly used for packing tape shredder, tires, films, bags, and other plastic waste
nets Of the broken recycling.
With dual-axis independent drive, unique knife shaft structure and four-angle rotary tool, in the low-speed
high-torque production process, there will be no winding axis, or stuck equipment phenomenon, thereby
improving the production efficiency.
2. Features of plastic shredder blade price,waste plastic crusher,shredder plastic
This multifunction shredder can shred and recycling the following materials:
1. A Variety Of Hollow Containers: Plastic Beverage Cans, Plastic Barrels, Drums, Crates,
Packaging Barrels.
2. Waste Appliances: TV, Washing Machine, Refrigerator Shell.
3. Pipe: Large Pipe, Pipe Fittings, PE Pipe.
4. The Old Template: Wooden Pallets, Plastic Pallets, Forklift Pallets.
5. Waste Tires: Tires Tires, Truck Tires.
6. Scrap Metal: Car Shell, Aluminum, Scrap Aluminum, Engine Shell, Lead And
Thickness Of 5Mm Below The Plate, Food Waste, Garbage, Animal Carcass, Medical Waste,
Biological Orange, Garden Garbage.
7. Plastic Head Material, Paper Rope, and Other Materials.
3. Applicationof hot sale steel shredder machine ,shredder for electric motor recycling prices cost:
1. Plastic: large head material, engineering plastics, paint barrels, glass
2. Appliances: TV sets, monitors, microwave ovens, dishwashers and other small and medium-sized home
appliances shell, electrical equipment
3. Electronic products: computer host shell, hard drive, CD-ROM, battery shell
4. Pipe: PVC, PE, PP and other pipe, urban water supply pipe, drain pipe
5. Wood: logs, pallets. Wood chop board, piece of furniture
6. Rubber: waste car tires, conveyor belt
7. Metal: metal sheet such as copper, aluminum or iron, aluminum castings and crush blocks,
motorcycles, car engine housings, oil filters
8. Worn clothes and so on.
4 Advantages
1. Unique multiple combination sealing structure effectively blocks the contact of broken material
and grease.
2. The liquid material can protect the bearing, gear, ensuring continuous and stable operation of
machine.
Moving blade:
1. The moving blade material is made of special alloy tool steel forging blanks, precision machining,
multiple heat treatments and low temperature freezing heat treatment technology.
2. The overall toughness hardness can be used repeatedly.

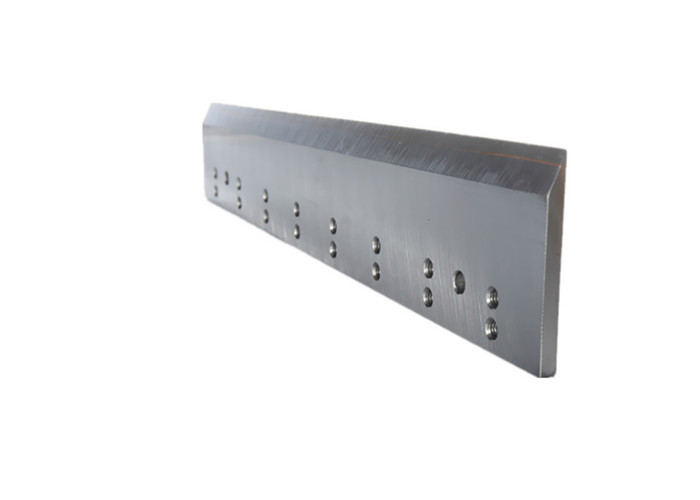

Shredding Blade:
1. CNC manufactured to extreme tolerances.
2. 55SiCr, 09CrSi is alloy tool steel with high tool hardness and good wear resistance.
3. Cr12MoV, Cr12Mo1V and SKD-11 are cold-working die steels with similar performance, strong
wear resistance and strong impact resistance.
Model |
Power (kw) |
Number of revolving knife |
Thickness of knife (mm) |
Diameter of knife (mm) |
Number of blade |
Dimension of crushing chamber (mm) |
Output (kg/h) |
Outline dimension L*W*H) |
Weight (kg) |
KL2-800 | 37 | 16 | 50 | φ300 | 5 | 800*600 | 500~1500 | 3600*2000*2420 | About 4300 |
KL2-1000 | 2×30 | 20 | 50 | φ350 | 5 | 1000*700 | 1000~2000 | 3500*2000*2820 | About 6500 |
KL2-1200 | 2*30 | 24 | 50 | φ400 | 5 | 1200*800 | 1500~2500 | 3800*2000*2820 | About 7000 |
KL2-1600 | 2×37 | 22 | 70 | φ450 | 5 | 1600*900 | 2000~3000 | 4700*2000*3000 | About 10500 |
1. Shredder Knives for Recycling Industry (Can be customized according to drawings)
We support the recycling industry with efficient blades and systems.
Including but not limited: Fly and Bed Knives,Shredder Blades etc.
2. Granulator knives for the recycling of reusable raw materials (PET, plastic, copper, aluminium, rubber, etc.) into granulate.
Product range:rotor and stator knives,fly and dead and bed blades,pelletizer knives, etc.
3. Machine Knives for the Rubber Tire Industry.
We supply standard and custom designs.Our product range for the rubber industry includes:
Shear Blades for steelcord and textile made from solid steel and if needed tungsten carbide tipped.
- coated is also possible.Circular Knives and Straight Knives with and without teeth.
