|Place of Origin:||China|
|Certification:||ISO 9001, CE|
|Model Number:||ZJ - FS 050|
|Minimum Order Quantity:||1 set|
|Price:||Price is negotiable|
|Packaging Details:||Anti-rust oil plastic bag inside packed in wooden cases outside|
|Delivery Time:||5 - 8 workdays|
|Payment Terms:||L/C, Western Union, T/T, MoneyGram, PayPal|
|Supply Ability:||1000 pieces per month|
|Product Name:||Forming Collar Of Packaging Machinery And Forming Set Accessories Customized Fluent Packaging||Material:||Stainless Steel 316|
|Optional Material:||SUS 316, Other Materials Required||Film Width:||320 Mm|
|Customized Order:||Accepted||Quality:||Food Security Standard|
|Usage:||For Forming Food Bags||MOQ:||1 Set|
|Tube Shape:||Produce As Your Packing Needs||Advantage:||Food Security SUS 304|

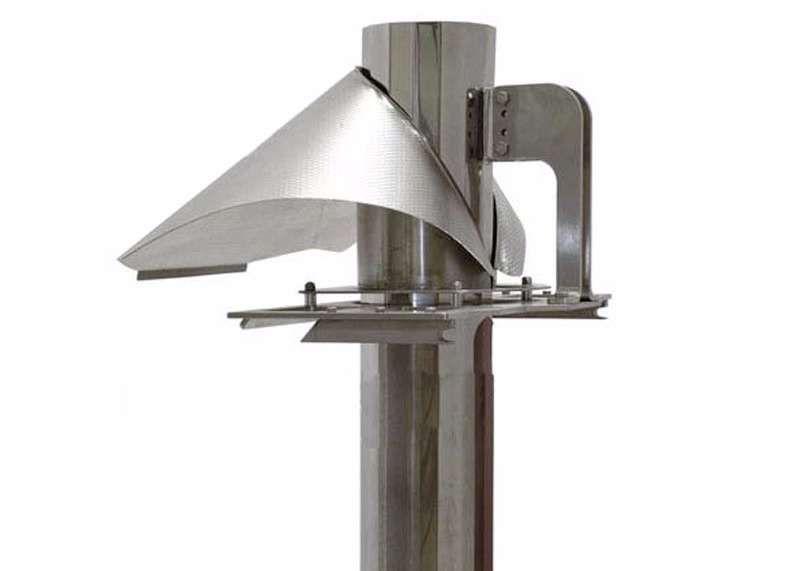

The packaging forming collar is the basic part of the vertical form, fill and seal packaging machine.
Our forming collar provides the shape over which packaging film is smoothly formed at high speed into a cylindrical shape.
Describing the forming collar geometry and hence its design is, however, remarkably difficult. While we have been researching the collars for
more than 20 years.
Our productions, for the first time, a flexible methodology for calculating the complete geometry of the film rather than the usually non‐
complete collar over which the film is formed. This means, a methodology to calculate the film geometry over the collar including the seam
along which the film is longitudinally sealed. The film geometry is calculated such that it has minimum deformation energy. Advantages of the
proposed methodology include its great flexibility to generate collars with different configurations for different needs. Among the collar
generation methods reviewed, the proposed methodology is the first that can systematically consider all collar configuration parameters such
as the seam configuration, general package cross‐section, flat or straight part of the collar, collar back angle, etc. A means for obtaining the
exact collar geometry is also demonstrated. This enables right‐first‐time and repeatable collar production and reduces the time and cost for
producing next generation packaging machines.
Make Packaging More Easier
By applying the movable parts to the formers and collars, the usually closed forming shoulder is rendered more accessible. Under normal
circumstances forming shoulders are closed for the filling tubes. Moveable front parts improve accessibility. The handling of film is much faster
and safer, especially when used in multilane forming sets.
Our forming shoulders of the "easy-to-open" design consist of a body which is mounted on the machine moveable front parts, which can be
opened and closed by a sliding mechanism
All parts are designed to move safely and without impacting any other parts when operated side by side.
Reducing assembling time as well as time savings when changing and cleaning the parts on account of the simplified handling of the filling
tube suitable for multilane forming sets.
Faster replacing and cleaning. More convinent for handling.
We offer a range of products that recognize that notevery need is the same.
Save replacement cost and extend the life of yourformer with our refurbishent services.
Storing multiple formers? We can custom fabricate former racks for as few as one and as many as ten formers. These racks can be made to
be stationary or mobile to suit any workspace.
With over 40 years in custom fabrication, we have developed a diverse capability in tight tolerance sheet and plate cutting.
Precision and fast turnaround are two of the things we pride ourselves on that is why we run a precision lasercutter from Mazak. Fabrication
technology for the formers is the top quality in China.
Filling Tubes Quantity: Our CNC processed formers can reach one set of former, with 4 tubes, 8 tubes, any quantity of the tubes to meet your
Former Tube Shape: Round tube, oval tube, square tube, ellipse tube, trapezoid tube, rhombus tube, these tubes of the forming collars are
made for your special requirements.
Technology of the tube: the outside surface of the filling tube is mirror surface, inner can make mirror surface as your special packaging
requirements.High precision of the tube, only - 0.02mm.
The over lap plate's : many kinds of the concavo-convex sus304 plates, different surfaces to satisfy your special requirements. Food secutity
material SUS 304.
Seal types: Make the fin seal part totally same to your packaging requirements. Very fluent passing the films and quite easily to form fims into
bags. 1 side seal, 2 side seals, 3 side seals, 4 side seals, 5 side seals for the bags, we are very familiar with their types.
Packaging weight : Small to sachet 1g, larger to more than 10 kg per bag. From light weight small bags to large size and heavy bags, we can
solve the packaging weight.
Film type : From PE films to aluminum foils, paper foils, all kinds are avaliable.
Innovations: We improve the packaging efficiency, transforming fillm speed, replacing tubes' innovations more convinent replacing, packaging
fomers' accessories innovations.
Reliable supplier, good quality products, fast service, professional productions.
Zhijing Precision Former factory has been manufacturing all kinds of fomrers for more than 25 years. Our vertical former can produce the
finishing bag size as small as 10mm, and as large as 1 meter size.
All our formers are made here are food security standard.

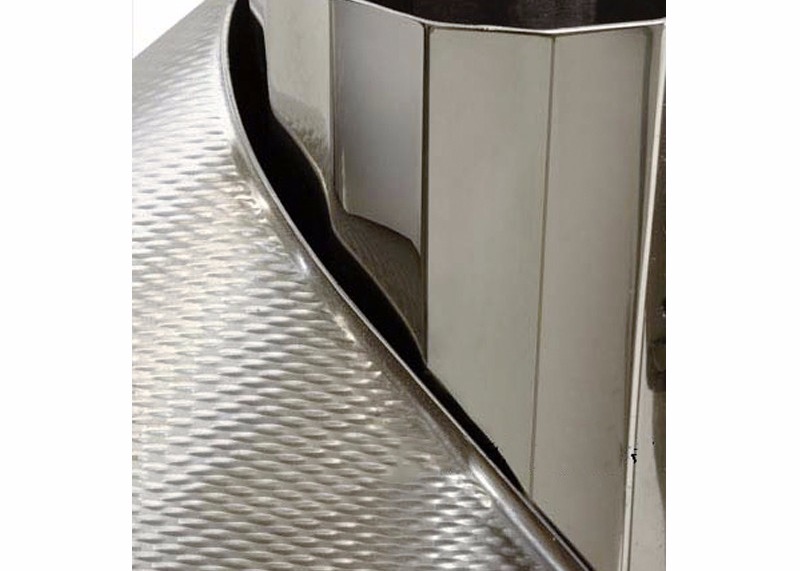

All of the forming collars are made of concavo-convex sus304 plates, reduce the film drag resistance and pull down the films more smoothly
and faster. And we can change the suitable plate's surface according to your special requiremements.
For construction the forming collars, we use the CNC technology to process. With high accuracy, perfct dimensions and surfaces, that makes
the former surpass the world wide's quality.
The forming tube we choose SUS 304 & SUS 316 , for producing the food security tubes. For the tube's thickness, we usually make it 2 - 4mm,
if need different tube thickness, we can also make it.
Every place of the former, we make it the mirror surface, very shining. While when assembling the former, it will be slippery by hands. Then
usually, we use the sand blast coating to the out side tube of the collar, so that when handling the formers, it will be more easy. And after the
sand blasting, the former looks more beautiful.
Your special requirements or any concern for the order, be told us clearly, then we can solve according to your special requirements.
1. FAST, SAFE AND PRECISE INSTALLATION When design allows, every former we ship comes with our patented us"*technology built-in. lt's
the Formers International standard. Zhijing Precision Machinery is operator-approved and tested by topinternational food producers. It is one
of the packaging industry's fastest installation solutions.
Disassembles easily for sanitation
Perfect alignment to prevent film pinching, snag, or performance issues
2. piece construction
Eliminates guesswork on former alignment
Consistent film dearance
Significantly reduces downtime for former changes and cleaning
ZHIJING IS OPERATOR- APPROVED AND TESTED BY TOP INTERNATIONAL FOOD PRODUCERS.
IT IS ONE OF THE PACKAGING INDUSTRY'S FASTEST INSTALLATION SOLUTIONS.
|Following information need your confirm first:|
|(1) Infeed angle|
|(2) Bag width or film width|
|(3) Height of mounting flange|
|(4) Width of seam|
|(5) Total height|
|(6) Vertical sealing form|
|You also need to send us the former's installation dimensions|
