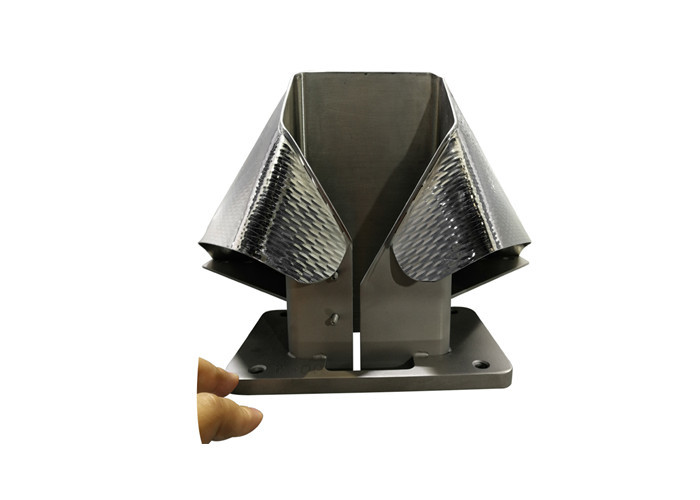

Rectangular Packaging Machine Forming Collar 120 Mm Film Width Optional Material

Basic Information
Place of Origin: China
Brand Name: ZHIJING
Certification: ISO 9001, CE
Model Number: ZJ - FS 027
Minimum Order Quantity: 1 piece
Price: Price is negotiable
Packaging Details: Anti-rust oil plastic bag inside packed in wooden cases outside
Delivery Time: 5 - 8 workdays
Payment Terms: L/C, Western Union, T/T, MoneyGram, PayPal
Supply Ability: 1000 pieces per month
Product Name: Rectangular Forming Sets /forming Collar/forming Shoulder Material: Stainless Steel 316
Optional Material: SUS 316, Other Materials Required Film Width: 120 Mm
Customized Order: Accepted Quality: Food Security Standard
Usage: For Forming Food Bags MOQ: 1 Piece
Tube Shape: Produce As Your Packing Needs Advantage: Food Security SUS 304
High Light:

forming sets


shoulder collar

Rectangular Forming Sets / forming Collar/ forming Shoulder

The packaging forming collar is the basic part of the vertical form, fill and seal packaging machine.

Our forming collar provides the shape over which packaging film is smoothly formed at high speed into a cylindrical shape.

Describing the forming collar geometry and hence its design is, however, remarkably difficult. While we have been researching the collars for


more than 20 years.

Our productions, for the first time, a flexible methodology for calculating the complete geometry of the film rather than the usually non‐


complete collar over which the film is formed. This means, a methodology to calculate the film geometry over the collar including the seam


along which the film is longitudinally sealed. The film geometry is calculated such that it has minimum deformation energy. Advantages of the


proposed methodology include its great flexibility to generate collars with different configurations for different needs. Among the collar


generation methods reviewed, the proposed methodology is the first that can systematically consider all collar configuration parameters such


as the seam configuration, general package cross‐section, flat or straight part of the collar, collar back angle, etc. A means for obtaining the


exact collar geometry is also demonstrated. This enables right‐first‐time and repeatable collar production and reduces the time and cost for


producing next generation packaging machines.


Forming Options:

Hard Chromed Shoulders
reduce wear
Specialist Coatings
Suitable plate to reduce drag
Fluent films to reduce noise levels
Have many additional options
Product Blockage Solution
to solve bridging issues and increase packaging speed
Gas Flushing Options
designed for various environments and formers
Dust Extraction
Block Bottom Extensions
Bag Spreaders
Integral Cones and Top Chutes


Make Packaging More Easier

By applying the movable parts to the formers and collars, the usually closed forming shoulder is rendered more accessible. Under normal


circumstances forming shoulders are closed for the filling tubes. Moveable front parts improve accessibility. The handling of film is much faster


and safer, especially when used in multilane forming sets.


Our forming shoulders of the "easy-to-open" design consist of a body which is mounted on the machine moveable front parts, which can be


opened and closed by a sliding mechanism

All parts are designed to move safely and without impacting any other parts when operated side by side.


Reducing assembling time as well as time savings when changing and cleaning the parts on account of the simplified handling of the filling


tube suitable for multilane forming sets.

Faster replacing and cleaning. More convinent for handling.


We offer a range of products that recognize that notevery need is the same.




Save replacement cost and extend the life of yourformer with our refurbishent services.




Storing multiple formers? We can custom fabricate former racks for as few as one and as many as ten formers. These racks can be made to


be stationary or mobile to suit any workspace.





With over 40 years in custom fabrication, we have developed a diverse capability in tight tolerance sheet and plate cutting.




Precision and fast turnaround are two of the things we pride ourselves on that is why we run a precision lasercutter from Mazak. Fabrication


technology for the formers is the top quality in China.


Our packaging former types:


Filling Tubes Quantity: Our CNC processed formers can reach one set of former, with 4 tubes, 8 tubes, any quantity of the tubes to meet your


packaging requirements.

Former Tube Shape: Round tube, oval tube, square tube, ellipse tube, trapezoid tube, rhombus tube, these tubes of the forming collars are


made for your special requirements.

Technology of the tube: the outside surface of the filling tube is mirror surface, inner can make mirror surface as your special packaging


requirements.High precision of the tube, only - 0.02mm.

The over lap plate's : many kinds of the concavo-convex sus304 plates, different surfaces to satisfy your special requirements. Food secutity


material SUS 304.

Seal types: Make the fin seal part totally same to your packaging requirements. Very fluent passing the films and quite easily to form fims into


bags. 1 side seal, 2 side seals, 3 side seals, 4 side seals, 5 side seals for the bags, we are very familiar with their types.


Packaging weight : Small to sachet 1g, larger to more than 10 kg per bag. From light weight small bags to large size and heavy bags, we can


solve the packaging weight.


Film type : From PE films to aluminum foils, paper foils, all kinds are avaliable.


Innovations: We improve the packaging efficiency, transforming fillm speed, replacing tubes' innovations more convinent replacing, packaging


fomers' accessories innovations.


Reliable supplier, good quality products, fast service, professional productions.


Zhijing Precision Former factory has been manufacturing all kinds of fomrers for more than 25 years. Our vertical former can produce the


finishing bag size as small as 10mm, and as large as 1 meter size.

All our formers are made here are food security standard.

All of the forming collars are made of concavo-convex sus304 plates, reduce the film drag resistance and pull down the films more smoothly


and faster. And we can change the suitable plate's surface according to your special requiremements.


For construction the forming collars, we use the CNC technology to process. With high accuracy, perfct dimensions and surfaces, that makes


the former surpass the world wide's quality.


The forming tube we choose SUS 304 & SUS 316 , for producing the food security tubes. For the tube's thickness, we usually make it 2 - 4mm,


if need different tube thickness, we can also make it.


Every place of the former, we make it the mirror surface, very shining. While when assembling the former, it will be slippery by hands. Then


usually, we use the sand blast coating to the out side tube of the collar, so that when handling the formers, it will be more easy. And after the


sand blasting, the former looks more beautiful.

Your special requirements or any concern for the order, be told us clearly, then we can solve according to your special requirements.



1. FAST, SAFE AND PRECISE INSTALLATION When design allows, every former we ship comes with our patented us"*technology built-in. lt's


the Formers International standard. Zhijing Precision Machinery is operator-approved and tested by topinternational food producers. It is one


of the packaging industry's fastest installation solutions.


Disassembles easily for sanitation


Perfect alignment to prevent film pinching, snag, or performance issues


2. piece construction


Eliminates guesswork on former alignment


Consistent film dearance


Significantly reduces downtime for former changes and cleaning






We are manufacturer for packing machine and tablet press


We can make customize former and tablet punch


Plese send us your requirement by mail if you want



Please send us the detail , we can make this parts for you Soon


Only 2 hours for this parts


Forming collar confirm size

Collar Type Vertical or Pillow
Film or foil width Need to be confirmed
Seal type Need to be confirmed
Bag width Need to be confirmed
Tube type Round tube or oval, or square
Collar total heighth Need to be confirmed
Bottom assembling dimensions Need to be confirmed
Collar photo Better offer us if have,
so that we can know better og your required collar


Contact us to get the prices.
