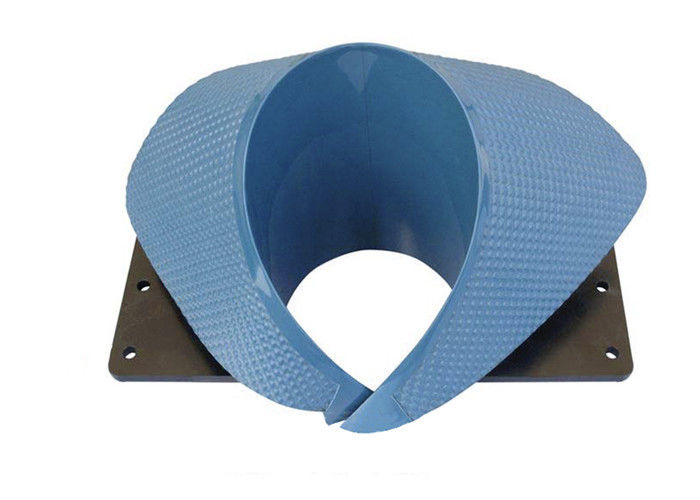

Oval Tube Packaging Machine Forming Collar Packaging Machinery Accessories

Basic Information
Place of Origin: China
Brand Name: ZHIJING
Certification: ISO 9001, CE
Model Number: ZJ - FS 028
Minimum Order Quantity: 1 piece
Price: Price is negotiable
Packaging Details: Anti-rust oil plastic bag inside packed in wooden cases outside
Delivery Time: 5 - 8 workdays
Payment Terms: L/C, Western Union, T/T, MoneyGram, PayPal
Supply Ability: 1000 pieces per month
Product Name: Oval Tube Forming Collars Packaging Machinery Accessories Of Former Material: Stainless Steel 316
Tube Shape: Produce As Your Packing Needs Film Width: 120 Mm
Customized Order: Accepted Quality: Food Security Standard
Usage: For Forming Food Bags MOQ: 1 Piece
Advantage: Food Security SUS 304
High Light:

packaging machine spare parts

,

shoulder collar

Oval Tube Forming Collars Packaging Machinery Accessories of Former

We produce the collar's tubes according to your packaging requirements.





The packaging forming collar is the basic part of the vertical form, fill and seal packaging machine.


Our forming collar provides the shape over which packaging film is smoothly formed at high speed into a cylindrical shape.


Describing the forming collar geometry and hence its design is, however, remarkably difficult. While we have been researching the collars for



more than 20 years.


Our productions, for the first time, a flexible methodology for calculating the complete geometry of the film rather than the usually non‐



complete collar over which the film is formed. This means, a methodology to calculate the film geometry over the collar including the seam



along which the film is longitudinally sealed. The film geometry is calculated such that it has minimum deformation energy. Advantages of the



proposed methodology include its great flexibility to generate collars with different configurations for different needs. Among the collar



generation methods reviewed, the proposed methodology is the first that can systematically consider all collar configuration parameters such



as the seam configuration, general package cross‐section, flat or straight part of the collar, collar back angle, etc. A means for obtaining the



exact collar geometry is also demonstrated. This enables right‐first‐time and repeatable collar production and reduces the time and cost for



producing next generation packaging machines.




NEW FORMERS


Make Packaging More Easier


By applying the movable parts to the formers and collars, the usually closed forming shoulder is rendered more accessible. Under normal



circumstances forming shoulders are closed for the filling tubes. Moveable front parts improve accessibility. The handling of film is much faster



and safer, especially when used in multilane forming sets.


Structure


Our forming shoulders of the "easy-to-open" design consist of a body which is mounted on the machine moveable front parts, which can be



opened and closed by a sliding mechanism


All parts are designed to move safely and without impacting any other parts when operated side by side.


Benefits


Reducing assembling time as well as time savings when changing and cleaning the parts on account of the simplified handling of the filling



tube suitable for multilane forming sets.


Faster replacing and cleaning. More convinent for handling.



We offer a range of products that recognize that notevery need is the same.



REFURBISHMENT



Save replacement cost and extend the life of yourformer with our refurbishent services.



CUSTOM RACKS



Storing multiple formers? We can custom fabricate former racks for as few as one and as many as ten formers. These racks can be made to



be stationary or mobile to suit any workspace.





CUTTING



With over 40 years in custom fabrication, we have developed a diverse capability in tight tolerance sheet and plate cutting.



FABRICATION



Precision and fast turnaround are two of the things we pride ourselves on that is why we run a precision lasercutter from Mazak. Fabrication



technology for the formers is the top quality in China.



Forming Options:

Hard Chromed Shoulders
reduce wear
Specialist Coatings
Suitable plate to reduce drag
Fluent films to reduce noise levels
Have many additional options
Product Blockage Solution
to solve bridging issues and increase packaging speed
Gas Flushing Options
designed for various environments and formers
Dust Extraction
Block Bottom Extensions
Bag Spreaders
Integral Cones and Top Chutes



Our packaging former types:



Filling Tubes Quantity: Our CNC processed formers can reach one set of former, with 4 tubes, 8 tubes, any quantity of the tubes to meet your



packaging requirements.


Former Tube Shape: Round tube, oval tube, square tube, ellipse tube, trapezoid tube, rhombus tube, these tubes of the forming collars are



made for your special requirements.


Technology of the tube: the outside surface of the filling tube is mirror surface, inner can make mirror surface as your special packaging



requirements.High precision of the tube, only - 0.02mm.


The over lap plate's : many kinds of the concavo-convex sus304 plates, different surfaces to satisfy your special requirements. Food secutity



material SUS 304.


Seal types: Make the fin seal part totally same to your packaging requirements. Very fluent passing the films and quite easily to form fims into



bags. 1 side seal, 2 side seals, 3 side seals, 4 side seals, 5 side seals for the bags, we are very familiar with their types.



Packaging weight : Small to sachet 1g, larger to more than 10 kg per bag. From light weight small bags to large size and heavy bags, we can



solve the packaging weight.



Film type : From PE films to aluminum foils, paper foils, all kinds are avaliable.



Innovations: We improve the packaging efficiency, transforming fillm speed, replacing tubes' innovations more convinent replacing, packaging



fomers' accessories innovations.



Reliable supplier, good quality products, fast service, professional productions.



Zhijing Precision Former factory has been manufacturing all kinds of fomrers for more than 25 years. Our vertical former can produce the



finishing bag size as small as 10mm, and as large as 1 meter size.


All our formers are made here are food security standard.


All of the forming collars are made of concavo-convex sus304 plates, reduce the film drag resistance and pull down the films more smoothly



and faster. And we can change the suitable plate's surface according to your special requiremements.



For construction the forming collars, we use the CNC technology to process. With high accuracy, perfct dimensions and surfaces, that makes



the former surpass the world wide's quality.



The forming tube we choose SUS 304 & SUS 316 , for producing the food security tubes. For the tube's thickness, we usually make it 2 - 4mm,



if need different tube thickness, we can also make it.



Every place of the former, we make it the mirror surface, very shining. While when assembling the former, it will be slippery by hands. Then



usually, we use the sand blast coating to the out side tube of the collar, so that when handling the formers, it will be more easy. And after the



sand blasting, the former looks more beautiful.


Your special requirements or any concern for the order, be told us clearly, then we can solve according to your special requirements.



Easy types for sachet formers


Good quality material SUS 304
High precision, tube tolerance only - 0.02mm
Smooth surface, film passing more fluenctly
Design selfly according to your packaging
Good workmanship of the formers
Suitable for a wide variety of powdered and granular products
Welding part also polished, good workmansip
Safe, precise installation.

ZHIJING PRECISION FORMERS



1. FAST, SAFE AND PRECISE INSTALLATION When design allows, every former we ship comes with our patented us"*technology built-in. lt's



the Formers International standard. Zhijing Precision Machinery is operator-approved and tested by topinternational food producers. It is one



of the packaging industry's fastest installation solutions.



Disassembles easily for sanitation



Perfect alignment to prevent film pinching, snag, or performance issues



2. piece construction



Eliminates guesswork on former alignment



Consistent film dearance



Significantly reduces downtime for former changes and cleaning



ZHIJING IS OPERATOR- APPROVED AND TESTED BY TOP INTERNATIONAL FOOD PRODUCERS.



IT IS ONE OF THE PACKAGING INDUSTRY'S FASTEST INSTALLATION SOLUTIONS.



We are manufacturer for packing machine and tablet press



We can make customize former and tablet punch



Plese send us your requirement by mail if you want





Please send us the detail , we can make this parts for you Soon



Only 2 hours for this parts



Forming collar confirm size

Collar Type Vertical or Pillow
Film or foil width Need to be confirmed
Seal type Need to be confirmed
Bag width Need to be confirmed
Tube type Round tube or oval, or square
Collar total heighth Need to be confirmed
Bottom assembling dimensions Need to be confirmed
Collar photo Better offer us if have,
so that we can know better og your required collar



Contact us to get the prices.
