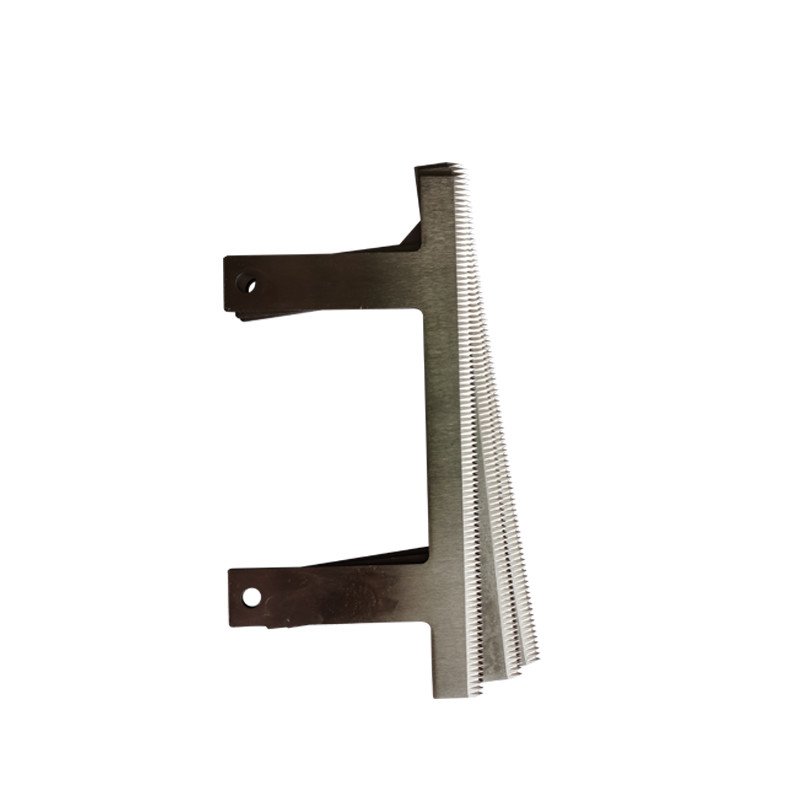

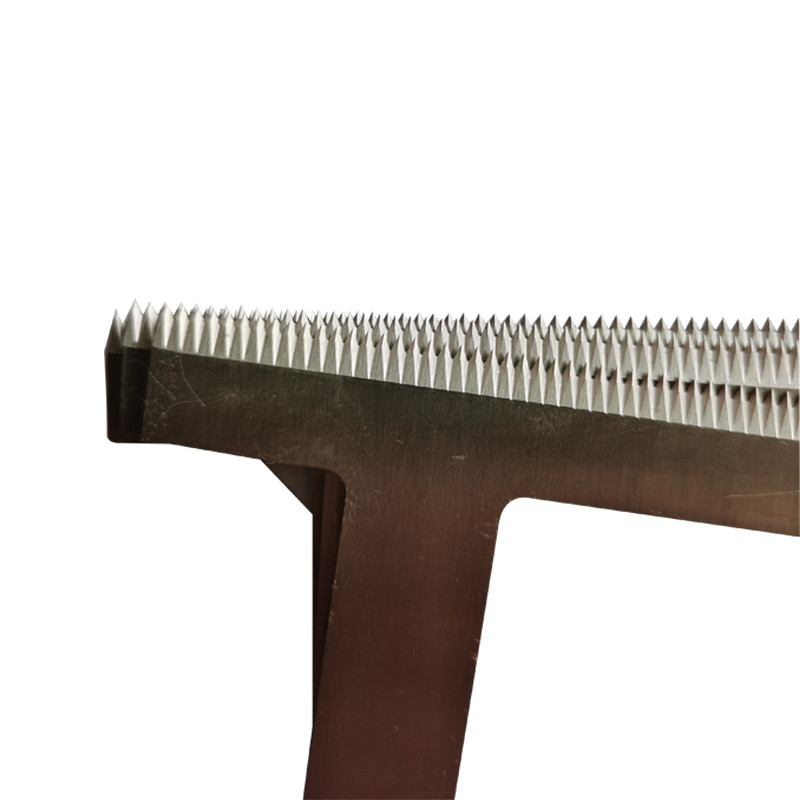

10mm HRA60 HSS Packaging Machine Serrated Tooth Knife

Basic Information
Place of Origin: China
Brand Name: ZHIJING
Certification: ISO9001
Minimum Order Quantity: 1 Pieces
Price: negotiable prices
Packaging Details: cartons and wooden case
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per month
Condition: New Warranty: 6 Months
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Peru, Mexico, Malaysia, South Korea, Sri Lanka, UKRAINE Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Product Name: Food Packaging Tear Notch Serrated Cutting Knife Tooth Serrated Knives
Material: HSS Optional Material: Materials Required
Hardness: 60-68 HRA Application: Packaging Industry
Size: 10-1100mm Quality: Warranted
Customize: Avilable Delivery Time: 8 Working Days
Selling Units: Single Item Single Package Size : 20X10X10 Cm
Single Gross Weight: 0.200 Kg Package Type: 1. Standard Export Packing: Anti-rust Oil Covered+plastic Bag+plywood Case; 2.As The Customer's Requirement. Packaging Machine Serrated Knives
High Light:

Packaging Machine Serrated Tooth Knife

,

HSS Serrated Tooth Knife

,

HRA60 Serrated Tooth Knife

Serrated Tooth Knife For Packaging machine serrated knives for cutting paper bags T- shape material M2 knife



Specification
Material Composition Sheet









Material
C
Si
Mn
Cr
W
P
S
V
Mo
6CrW2si
0.55-0.65
0.50~0.80
≤0.40
1.00-1.30
2.00-2.70
≤0.030
≤0.030


9CrSi
0.85-0.95
1.20-1.60
0.30-0.60
0.95-1.25

≤0.030
≤0.030


Cr1 2MoV
1.45-1.70
≤0.40
≤0.40
11.0-12.5

≤0.030
≤0.030
0.15-0.30
0.40-0.60
4Cr5MoSIV1
0.32-0.45
0.80-1.20
0.20-0.50
4.75-5.50
1.10-1.75
≤0.030
≤0.030
0.80-1.20

42CrMo
0.38-0.45
0.17-0.37
0.50-0.80
0.90-1.20

≤0.035
≤0.035

0.15-0.25
5CrW2S1
0.45-0.55
0.50-0.80
<0.40
1.00-1.30
2.00-2.50
<0.030
<0.030


W6Cr5Mo4V2
0.80~0.90
0.20~0.45
0.15~0.40
3.80~4.40
5.50~6.75
≤0.030
<0.030
1.75~2.20
4.50~5.50
The World Grade Of Steel Contrast









China
USA

Japan
Germany
France

France

UK
ISO
GB
ASTM
AISI
JIS
DIN

NF

BS
ISO
6CrW2S1
A681

G4404





4957
9CrSi



90CrSi5





Cr1 2Mo1V1
D2
D2
SKD11
X165CrMoV12

2235Z160CDV12

BD2BD2A

4Cr5MoSIV1
H13
H13





BH13

42CrMo
4140
4140
SCM440
42CrMo4

45WCrv7

708M40
R683
5CrW2S1


45WCrv7
45WCrv7



BSI




Packing & Delivery


All of our products are carefully packed. We will chose suitable packaging box for the products: foam box, carton, wooden case to protect the products from shipping damages
Company Profile

10mm HRA60 HSS Packaging Machine Serrated Tooth Knife 0
10mm HRA60 HSS Packaging Machine Serrated Tooth Knife 1




Steel choice, edge finish style, bevel angle, edge thickness, surface micro finish, hone technique, flatness, side run-out… all are critical functions that will affect the performance of the blades you use in the processings. Tell us what your cutting challenges are and we’ll build you a blade that overcomes those challenges. With over 35 years' experience in providing you the right specifications to optimize performance, you can count on Zhijing. With in-house laser cutting capabilities, we can cut virtually any shape you can imagine without expensive tooling. On-site, state of the art heat treating equipment ensures a controlled process, giving you the assurance you need that the blades you use are as flat as can be. With many types of alloys that are formulated to meet the stringent demands faced by today’s conversion operations in stock, you can get the performance you need when you need it. Tolerances are monitored closely to ensure that our blades and knives are easy to set up and tune, so you are up and running as fast as possible. Zhiijng blades deliver long life and consistent performance, helping to drive efficiency and profitability – your bottom line. There’s a fine line between edge performance and durability, and we provide products that address both of those requirements. So if you slit it, trim it or cut it to length, Zhijing blades give you cutting edge performan



Certifications
10mm HRA60 HSS Packaging Machine Serrated Tooth Knife 2




Processing for the knives and blades
1. Selecting Material Choose the suitable materials for the products' processings.
Materials we have: 9CrSi, Cr12mov, W6Mo5Cr4V2, LD, H13, 9Mo2V, 60Si2Mo, 15GCr12,Cr12, 42CrMo,55SiCr,DC53,3Cr13,SK5, HSK-51, SKD-11, M2, D2,ASP30, ASP60, PM79, EM2
2.Forging Increasing the density of the material and the hardness of the
material
3.Annealing The material hardness can be rapidly reduced to facilitate fine
machining finishing.
4. Finishing machining Process the raw material into the suitable shapes.
5. Quenching Increase the hardness of the molded products.
6. Heat preservation In order to increase the abrasion resistance of the product, it must be
insulated for a long time.
7. First grinding Grinding product accuracy, glossiness, parallelism, etc.
8.Accurate grinding Super grinding to increase the precision and the parallel of
products
9.Hardening and tempering Hardening and tempering the parallel of products for
processing.
10.Quality check Refusing the unqualified products into the market
11.Packaging Choose suitable packaging for the products.



Our Advantages
The main advantages of blades: (1) High hardness and wear resistance, meanwhile use hard material coating in line with application requirements and the coating can reduce friction to reach excellent cutting ability and low wear characteristics. (2) Sufficient strength and toughness to bear greater cutting force, and impact load and vibration. (3) Good heat resistance brings good processability, such as processing performance, forging performance, high-temperature plastic deformation and grinding performance. (4) Regarding to high precision requirements, we now can ensure the thickness tolerances up to ±0.0005. Therefore, for inner circle, disk blades tolerance can be achieved to H3. All inspections of high precision products are made in the constant temperature room. (5) With the increasing requirements on the precision of metal sheet processing, we have developed ultra-high precision cutting tools, only the precision milling tools can match with its accuracy so far. ±0.001mm thickness to Ra0.1u surface roughness are our common standards. By using our technique and expertise, we can meet customers’ higher requirements in regarding to thickness, parallelism, flatness and so on.


In the packaging industry, the focus is on convenience and speed, and at ZHIJING, we stay true to the trends
We have a unique array of dedicated machines and manufacturing cells to meet the demand with quick
turnaround.
At ZHIJING, we manufacture industrial machine knives for many types of packaging applications including
VFFS, HFFS, cup and tray sealing, rollstock, and vacuum packaging, with cutting edges including straight
tooth bagger knives, zig zag flow wrappers, cross cut and slitting knives. We can manufacture a range of
OEM tooth designs including serrated, perforated and EZ open profiles, and have the ability to add tear
notches, wear and nonstick coatings to cater to your unique application.
We use nothing less than superior European grades of stainless steel, combined with precision sharpenin
techniques to provide a consistent tooth profile for package appearance, maximum yields and the ability
cut all grades and thickness of films. We also have the ability to manufacture new or reconditioned sealin
jaws or crimpers for a more convenient, cost-effective purchase.
At ZHIJING, we leverage our 30 years of industry experience to bring a unique understanding of machine
knife composition, providing superior-quality material grades, hardness and finishes, and precise dimen-
sional tolerances to provide our customers maximum yields.
We deliver nothing less than the highest quality knives, with superior technical expertise and the best
service in the industrial machine knife industry. Please email us at info@worldblade.com for all of your machine
knife needs.
